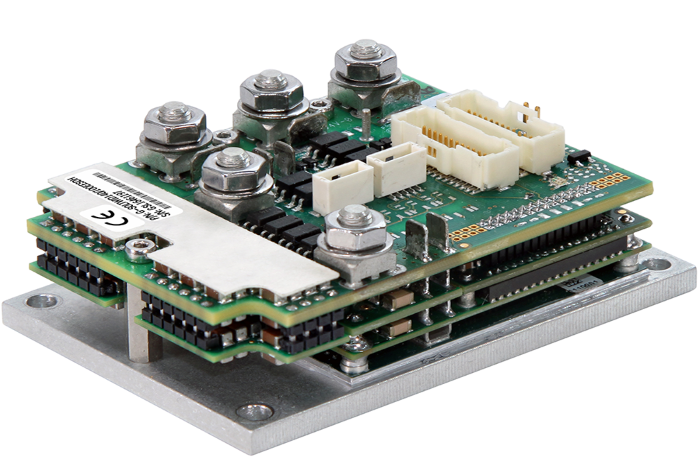

ELMO驅動器-GOLD SOLO DOUBLE TWITTER
Gold Solo Double Twitter的亮點：
- 高功率密度，超過10000W的功率
- 超大電流 – 最高 160A/80V，140A/100V
- 易于連接配置
- 創記錄的超輕重量，僅 18-22 克（不到 1 盎司）
- 超小體積，超高效，設計可安裝在 PCB 上
- 先進的總線網絡技術，支持EtherCAT或 CANOpen
-
工作范圍廣：
- “80VDC”,11VDC- 75VDC
- “100VDC”, 11VDC- 95VDC
- “200VDC”, 20VDC- 195VDC
- 支持任何單環、雙環和龍門環路配置的編碼器反饋
高功率密度，迷你型伺服驅動器
Feature
Units
D160/80
D140/100
D40/200
Minimum supply voltage
VDC
11
20
Nominal supply voltage
VDC
65
85
170
Maximum supply voltage
VDC
75
95
195
Maximum continuous
Electrical power output
kW
10
11
7
Efficiency at rated power (at nominal conditions)
%
> 99
Maximum output voltage
Up to 96% of DC bus voltage
Amplitude sinusoidal/DC
continuous current
A
160
140
40
3-Phase Sinusoidal continuous
RMS current limit (Ic)
A
113
99
28
DC Motor (any two phase motor)
A
100
40
Current limit
A
Max Output current is guaranteed for THeat-Sink <85°C
